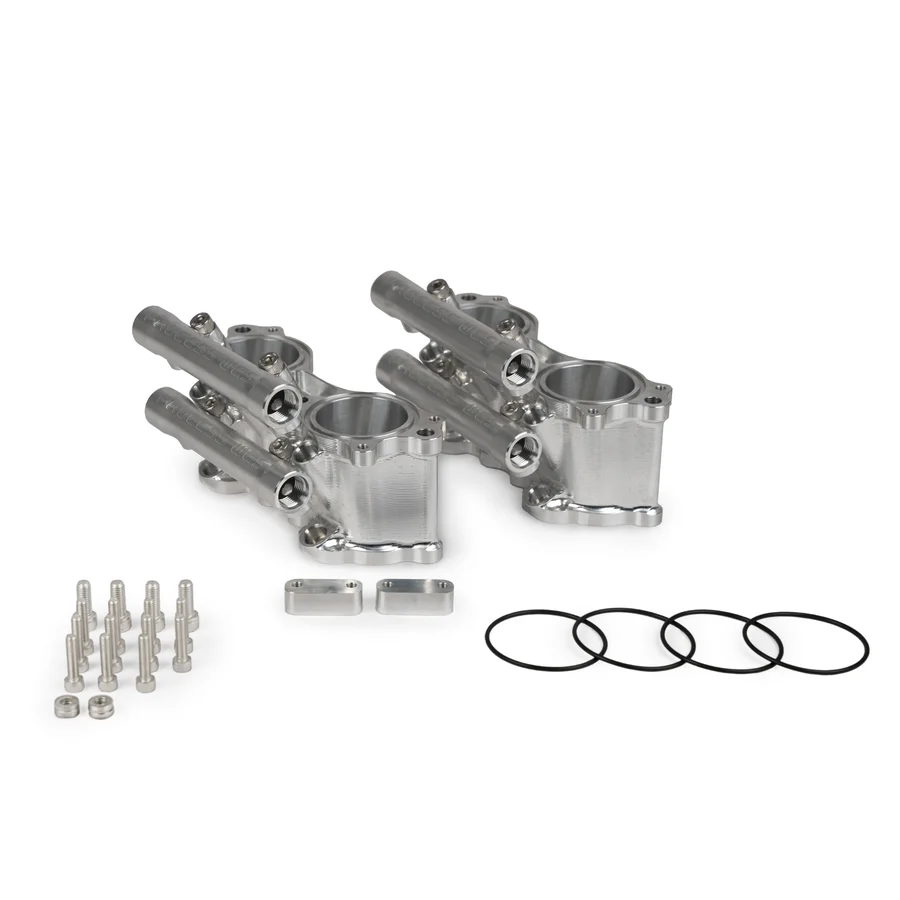

Tyrant4x4 Dual Fuel Rail TGV Tumbler Delete Kit – Subaru EJ20 & EJ25
Take your Subaru EJ-series performance build to the next level with the Tyrant4x4 Dual Fuel Rail TGV Tumbler Delete Kit.
Designed as a bolt-on performance upgrade, this integrated assembly addresses two important areas for high-performance EJ engines: intake airflow restriction and fuel delivery capacity.
The kit replaces the factory Tumble Generator Valve (TGV) assembly with precision-machined billet components while incorporating a dual fuel rail system designed to support upgraded injectors and higher-demand fuel systems.
Whether you’re building a high-boost street car, track-focused Subaru or an E85 performance setup, the Tyrant4x4 TGV Delete and Dual Fuel Rail Kit provides a streamlined solution for upgrading the intake and fuel delivery system.
Billet TGV Tumbler Delete
Factory Tumble Generator Valves (TGVs) use butterfly-style valves within the intake runners. While these components serve a purpose in the factory intake system, they can become an airflow restriction as engine airflow requirements increase.
The Tyrant4x4 Billet TGV Tumbler Delete replaces the factory valve assembly with a smooth, high-flow internal passage, helping reduce restrictions between the intake manifold and cylinder heads.
By removing the factory TGV mechanism, the system is designed to provide a cleaner and less restrictive airflow path for performance-oriented EJ20 and EJ25 builds.
CNC-Machined Billet Construction
The TGV delete components are CNC machined from billet aluminium, providing precise dimensions and a robust construction suitable for performance applications.
The internal passages are designed with smooth transitions to promote efficient airflow into the cylinder head ports.
Key design features include:
- CNC-machined billet aluminium construction
- Smooth internal airflow passages
- Radiused inlet and outlet profiles
- Reduced restriction compared with the factory TGV assembly
- Precision fitment for compatible Subaru EJ applications
Optimised Airflow
The internal geometry of the Tyrant4x4 TGV Delete is designed to create a smoother path for intake air as it travels toward the cylinder head.
Removing the factory TGV butterfly valves eliminates the associated obstruction and provides a more direct airflow path.
For modified engines operating at increased boost and airflow levels, reducing restrictions within the intake tract can help support the engine’s overall airflow requirements.
Note: Actual power gains will vary depending on the turbocharger, intake system, cylinder heads, injectors, ECU calibration, fuel type and other engine modifications.
Integrated Dual Fuel Rails
High-output EJ engines can require significantly greater fuel flow than the factory fuel system was designed to provide.
The Tyrant4x4 Dual Fuel Rail System is integrated directly into the TGV Delete assembly, providing a practical solution for performance builds using larger injectors and upgraded fuel systems.
The dual-rail configuration is designed to support consistent fuel distribution across the injectors while providing the capacity required by higher-output engine combinations.
Designed for High-Flow Fuel Systems
The dual fuel rail configuration is particularly suited to performance builds running:
- Larger fuel injectors
- Upgraded turbochargers
- Increased boost pressure
- E85
- Race fuel
- High-flow fuel pumps
- High-horsepower EJ engine setups
Providing adequate fuel flow is critical when increasing engine power. The Tyrant4x4 dual-rail system provides additional fuel-system capacity for builds where the factory arrangement may no longer meet the engine’s requirements.
Fuel system components should always be correctly sized and matched to the injectors, fuel pump, regulator, ECU calibration and intended fuel type.
Integrated TGV Delete & Fuel Rail Design
Instead of using separate TGV delete spacers and fuel rail components, the Tyrant4x4 system combines the two functions into a single integrated assembly.
This approach helps simplify the installation while creating a clean and compact solution for modified EJ engines.
The integrated design can also help reduce unnecessary components and potential connection points within the intake and fuel system.
Built for High-Performance Subaru Builds
The Tyrant4x4 Dual Fuel Rail TGV Tumbler Delete Kit is designed for Subaru enthusiasts building engines beyond factory specifications.
By combining billet TGV deletes with an integrated dual fuel rail system, the kit provides an upgrade path for both intake airflow and fuel delivery on suitable EJ20 and EJ25 applications.
Key Features
- Integrated TGV Tumbler Delete and Dual Fuel Rail Kit
- Designed for Subaru EJ20 and EJ25 engines
- CNC-machined billet aluminium construction
- Smooth, high-flow internal passages
- Reduced intake restriction
- Radiused inlet and outlet profiles
- Integrated dual fuel rails
- Designed to support larger injectors
- Suitable for high-boost performance builds
- Compatible with applications using E85 and other performance fuels
- Streamlined alternative to separate TGV delete and fuel rail components
Vehicle Compatibility
Subaru WRX & STI
- EJ20 / EJ25
- 2001–2007
- GD Chassis
Subaru STI
- EJ25
- 2008–2021
- GR / GV / VA Chassis
Always verify engine, chassis and model-year compatibility before ordering.
Upgrade Your EJ Performance Build
The Tyrant4x4 Dual Fuel Rail TGV Tumbler Delete Kit combines intake airflow optimisation and upgraded fuel delivery in one performance-focused assembly.
With CNC-machined billet aluminium construction, smooth internal passages and integrated dual fuel rails, it is designed for Subaru EJ20 and EJ25 builds requiring greater airflow and fuel-system capacity.
For high-boost, E85 and high-output applications, the Tyrant4x4 kit provides a clean and robust foundation for further engine upgrades.
